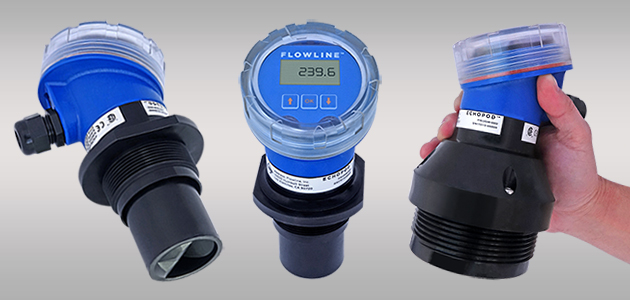

EchoPod® UG06 & UG12 Reflective Ultrasonic Liquid Level Sensor Transmitter


The general purpose reflective ultrasonic level transmitter provides continuous level measurement up to 39.3’ (12m) with a 4-20 mA analog signal output, and is configured via its integral push button display module or WebCal software. The non-contact liquid level sensor features our proprietary Reflective Technology™ that delivers reliable level measurement in condensing environments. Select this sensor for bulk tanks with non-foaming and mildly vaporous media such as chemicals, water, wastewater and oil. Typical applications include bulk storage, neutralization tank, clarifier and waste sumps.

Categories: ,
For more information about EchoPod® UG06 & UG12 Reflective Ultrasonic Liquid Level Sensor Transmitter please call us on 01 4614300 or email one of the sales team at enquiries@modernplant.ie or visit us at the trade counter on the Naas Road in Dublin.



Features

  • Offered in 6m (19.6’) and 12m (39.3’) measurement ranges
  • Reflective Technology™ measures reliably with condensation
  • Corrosion resistant PVDF transducer with IP68 PP enclosure
  • Fail-safe diagnostics with selectable signal fail-safe outputs
  • LCD display indicates level in inches, meters or percent of span
  • Narrow 3” (7.6cm) beam width for applications with limited space
  • Windowed enclosure cap provides liquid tight level indication
  • Configuration via push button display or WebCal software
  • Automatic temperature compensation from -40º to 80º C.
